Floor Installation

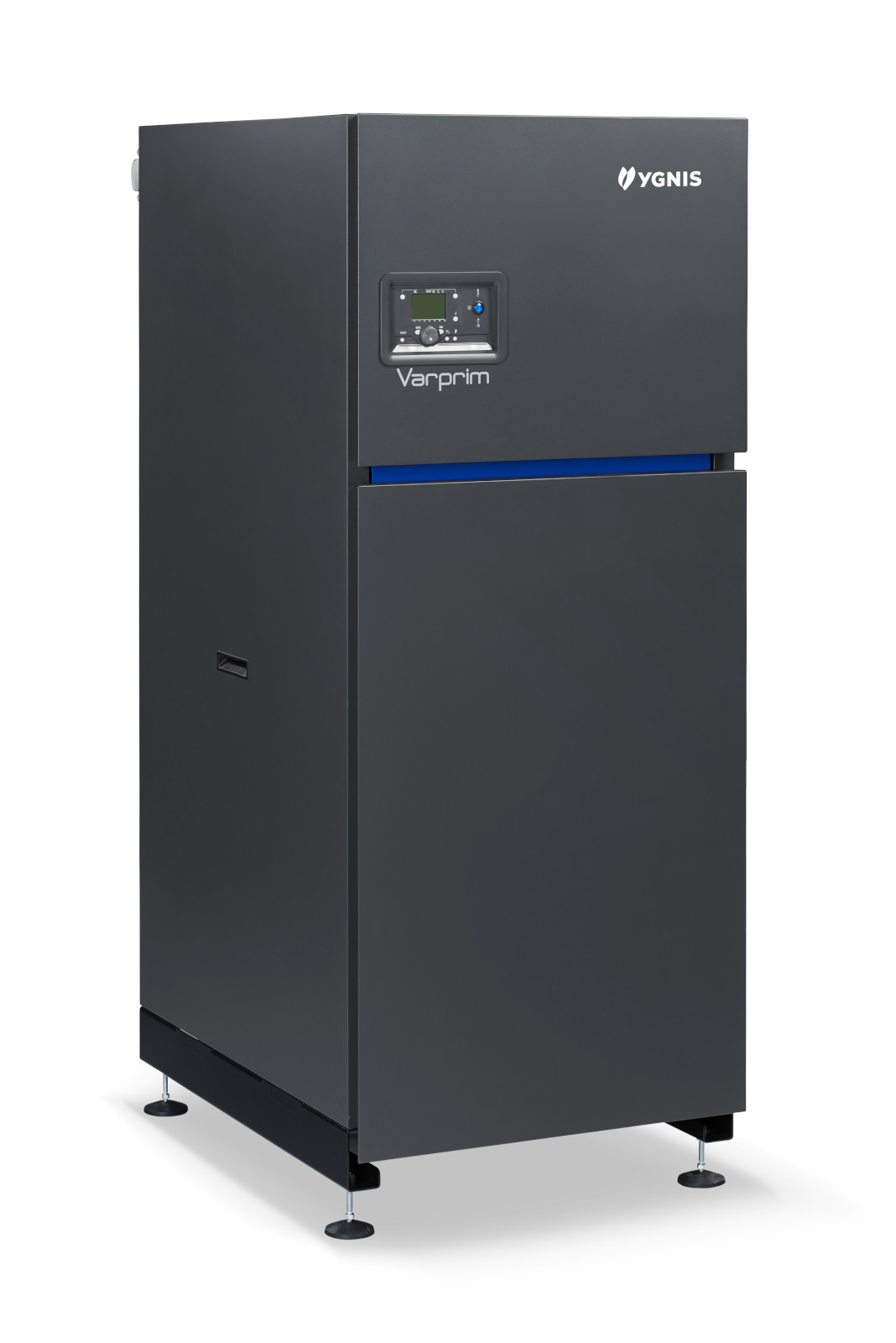

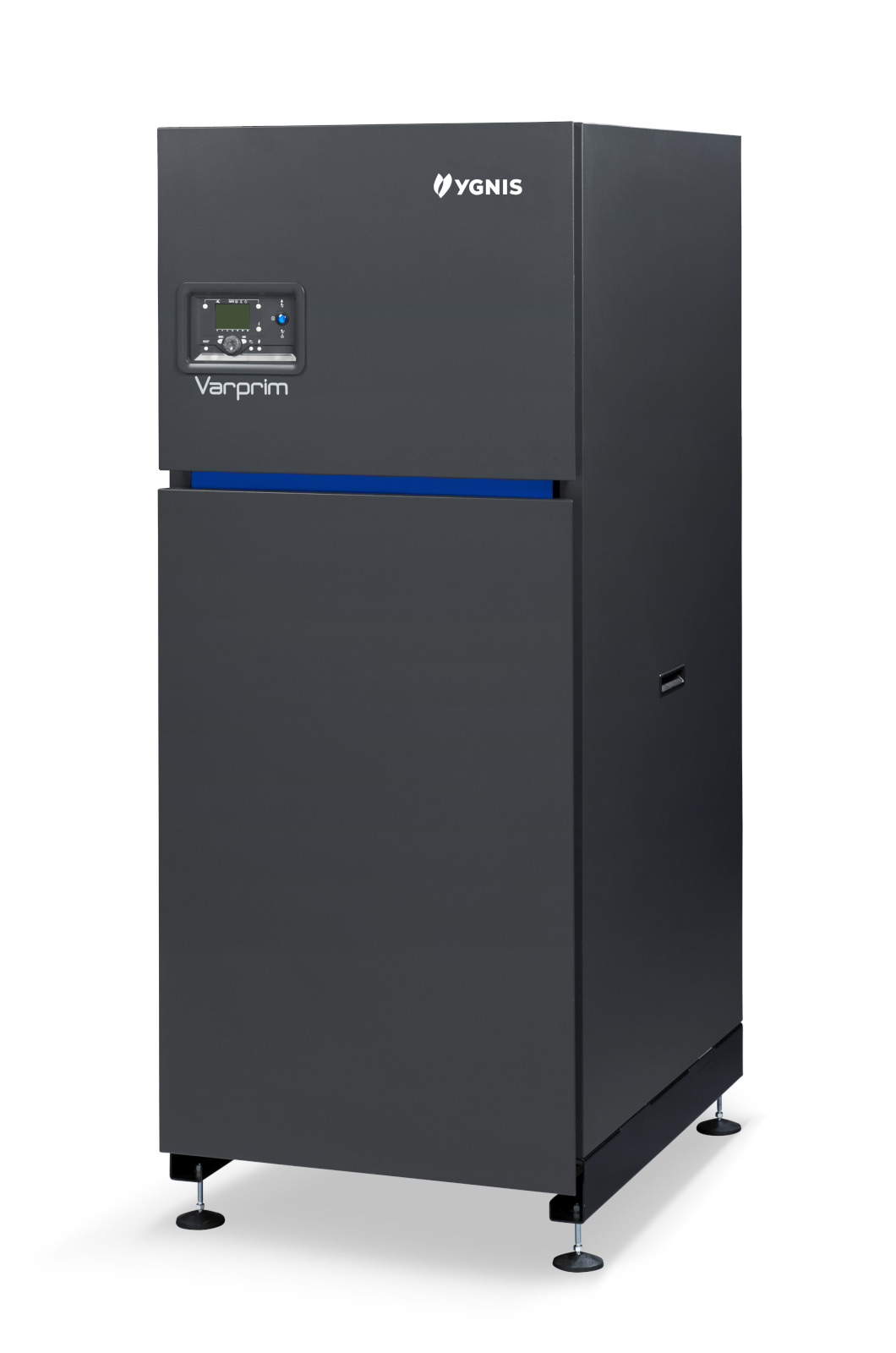

Varprim

6 models from 120 to 320 kW
  • Stainless steel combustion chamber
  • Modulation from 20 to 100%
  • Simple to install since no hydraulic decoupling is required
  • Integrated control (boiler, cascade and circuit management)
  • Burner fitted with an air filter
Warranties
  • Combustion chamber: 3 years
  • Electrical equipment + burner: 2 years
Ask for a quote

Description in details

Supplied with

  • Stainless steel combustion chamber: Dual hydraulic connection, Drain valves, Condensate drain, Lifting rings, Levelling feet
  • Modulating gas burner with full premix from 20 to 100%: Gas valve with constant air/gas ratio, Air filter, Flame viewer, Active ionisation flame control
  • Navistem B3000 control at the front: Temperature sensors: boiler flow and return, exhaust, Water pressure sensor, Air differential pressure switch, Safety thermostat
    Easily removable jackets

Accessoiries

  • Set of shock-absorbing feet
  • Counter-flange kit (from 180 to 320 kW)
  • Non-return flue check valve (for B23p)
  • Neutra (N70/N210) and lift pump
  • Complete pre-mounted hydraulic connection kit for a single boiler or four cascaded boilers
  • Control accessories

Specificities

  • Power supply 230V 50 Hz
  • Maximum flow set point temperature of 85°C
  • Chimney connection only (B23/B23p)
  • Natural gas supply, 20 mbar or 300 mbar
  • Operating pressure of 6 bar

Download documentation

User Manual

YGNIS VARPRIM USER MANUAL EN

download
