Floor Installation

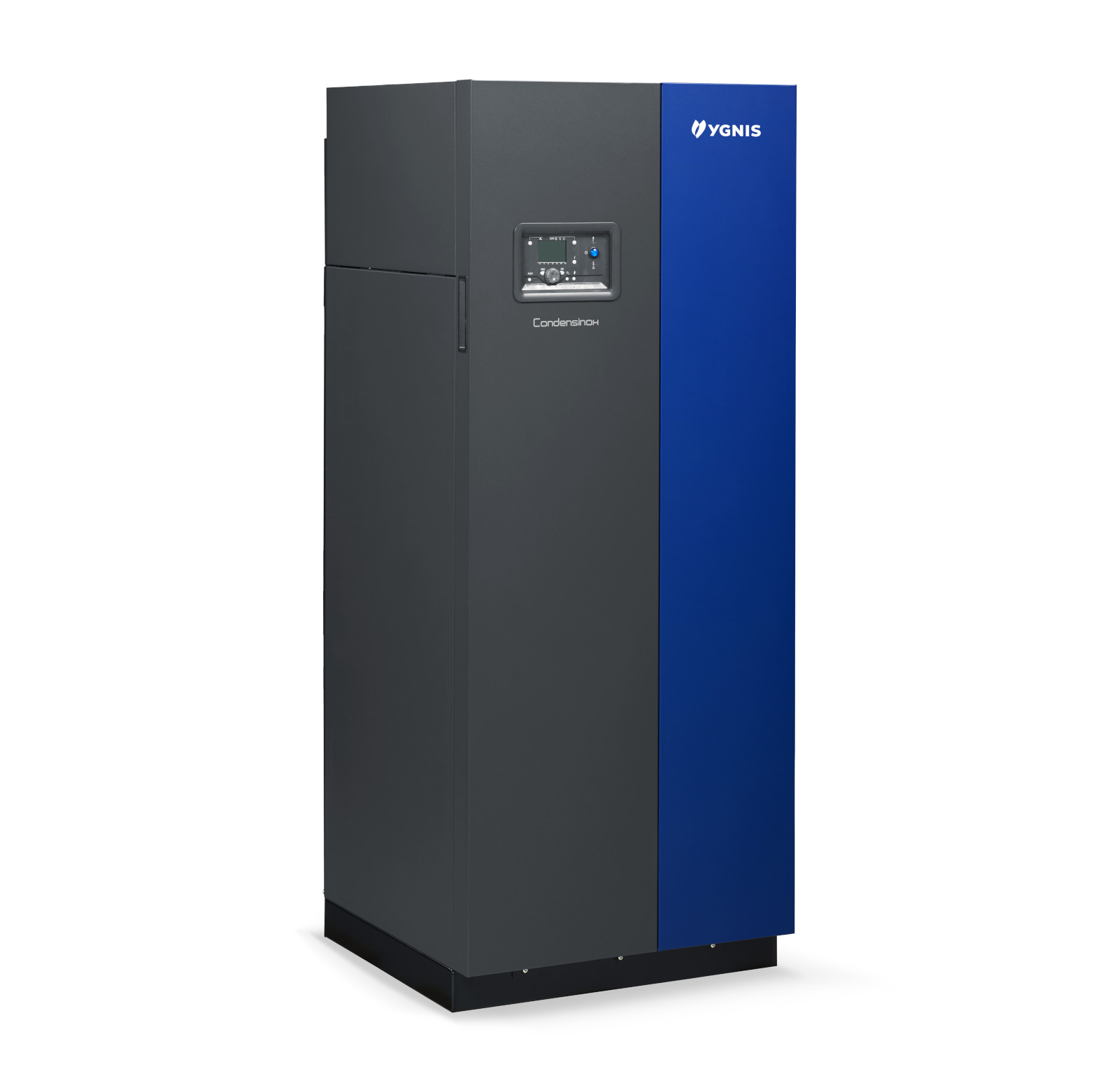

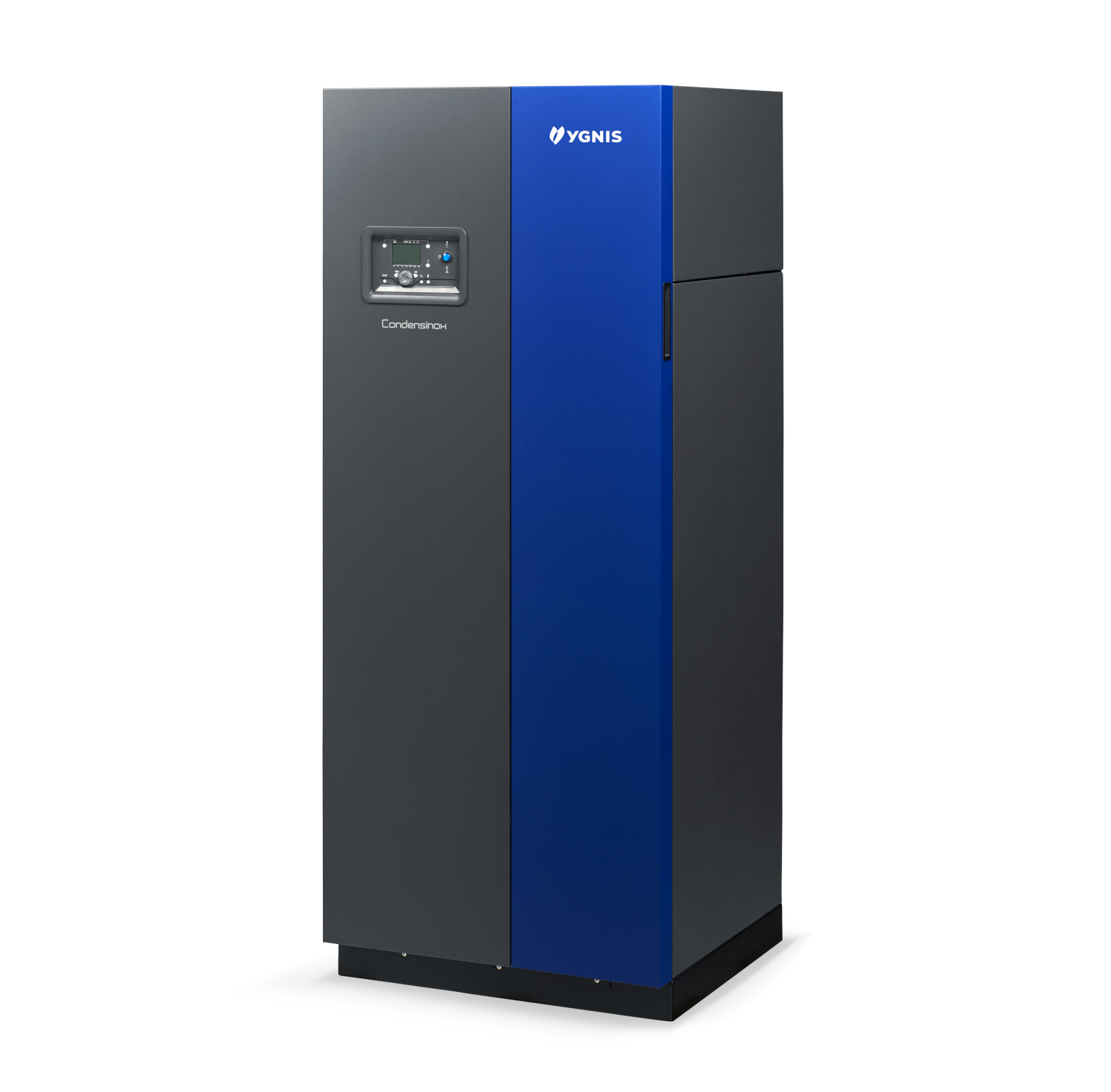

Condensinox

5 models from 40 to 100 kW
  • Stainless steel combustion chamber
  • Optimised condensation with 2 or 3 connections
  • Modulation from 20 to 100%
  • Easy installation: easy access in plant rooms, small footprint
  • Hydrostable concept: simple to install since no hydraulic decoupling is required
  • Mini plant room models (40 to 70 kW)
  • Integrated control (boiler, cascade and circuit management)
Warranties
  • Combustion chamber: 3 years
  • Electrical equipment + burner: 2 years
Ask for a quote

Description in details

Supplied with

  •  Stainless steel combustion chamber: Hydraulic connection with 2 or 3 tappings, Drain valve, Safety valve, Pressure gauge, Drain cock, Condensate drain
  •  Modulating gas burner with full premix from 20 to 100%: Gas valve with constant air/gas ratio, Flame viewer, Active ionisation flame control
  •  Navistem B3000 control: Temperature sensors: boiler flow and return, exhaust, Water pressure sensor, Air differential pressure switch, Safety thermostat
  • Easily removable jackets and hood

Accessoiries

  • B23 and B23p chimney adaptation kits
  • Horizontal and vertical outlet valve connection kits for a single boiler
  • Flue gas manifold kit for B23/B23p connection, up to 4 boilers in a row (40 and 60 kW boilers can be mixed with 70, 80 and 100 kW boilers)
  • Complete connection pack for cascading up to 4 boilers (consult us for back-to-back configurations in 40 and 60 kW)
  • Gas pressure regulator for the transition from 300 to 20 mbar with filter
  • Condensate neutralisation kit
  • Control accessories





Specificities

  • Power supply 230V 50 Hz
  • Maximum flow set point temperature of 80°C
  • Chimney (B23/B23p) and outlet valve (C13/C33/C53) connections
  • Natural gas supply, 20 mbar
  • Runs on propane (37 mbar) in B23/B23p only
  • Operating pressure of 4 bar
